GJ
阿法拉伐GJ產品線為工業應用提供廣泛的儲罐清洗機，如油漆，鋼鐵，紙漿和造紙，化學品以及石油和天然氣。從能夠清潔小型儲罐/工藝罐到尺寸超過5678m3（150萬加侖）的大型工業發酵罐和儲罐。該生產線還包括一個特殊單元，用于通過單向開口清潔地下儲罐。
A quality product
The Alfa Laval GJ tank cleaning devices are part of our highly acclaimed Gamajet product range. Alfa Laval technology combines pressure and flow to create high impact cleaning jets that are precision engineered to rotate in a precise, repeatable and reliable 360-degree pattern.
Positive return on investment
The unique design reduces your cost to clean and environmental footprint by minimizing the amount of water, energy and cleaning agents required to clean tanks. Using high-impact jet cleaning instead of traditional ineffective static spray ball reduces waste and resource consumption.
Retrofit old spray ball
Due to the physical size of the Alfa Laval GJ PF, it is now possible to upgrade your cleaning device to a more efficient solution. The low profile Alfa Laval GJ PF fits though a 4” connection, making it possible to install the device into an existing tank top connection.
Product benefits
- Fast cleaning time = More production time.
- Reduces water and resource usage, leading to reduced cost to clean.
- Eliminates the need for confined space entry for manual tank cleaning.
- Durable and reliable, rotary jet heads are proven to boost cleaning efficiency by providing reliable and repeatable cleaning performance.
- Cleaning process can be validated using Alfa Laval RotaCheck

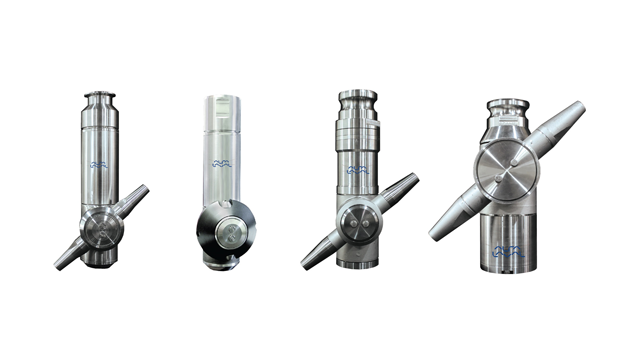

The range of Alfa Laval GJ:
- Alfa Laval GJ 4
- Alfa Laval GJ 8
- Alfa Laval GJ 10
- Alfa Laval PF
運行原理
High-impact, low-resource cleaning
The high-impact jet stream from the rotary jet head is preprogrammed to cover the inside of the tank in a continually denser pattern. This achieves a powerful mechanical impact with a low volume of water, acid or caustic. Most of the GJ rotary jet heads are capable of operating at both high and low pressures.
Smoother, long-lasting performance
The Alfa Laval GJ range includes a unique, grease-lubricated gear to ensure that potentially damaging particles are not trapped in the gear during CIP recirculation. This innovative design ensures a smoother performance and reduces wear and tear.
Energy-efficient design
A faster tank cleaning cycle also cuts energy consumption. Cleaning fluid flows through the nozzles in an automated, geared rotation around the vertical and horizontal axes. In the first cycle, the nozzles lay out a coarse pattern on the tank surface, with subsequent cycles progressively densifying the pattern over the course of eight cycles.
Part of a broad industrial tank cleaning range
Alfa Laval offers a comprehensive range of tank cleaning equipment intended for industrial applications such as fertilizers, inorganic chemicals, petrochemicals, biofules, oil and gas, home care, paper production, pulp production and steel production.
- Alfa Laval GJ 4
- Alfa Laval GJ 7
- Alfa Laval GJ 8
- Alfa Laval GJ 9
- Alfa Laval GJ 10
- Alfa Laval GJ PF
- Alfa Laval GJ BB
For a broader tank cleaning range, explorer the different product categories: TJ, T/TZ , MultiJet and SaniJet.
